System context
Across multiple operational systems built on top of WordPress and WooCommerce, one recurring requirement kept emerging:
Order statuses were not cosmetic labels — they were operational state indicators.
In many deployments:
- orders moved through custom internal states,
- teams depended on strict and predictable status ordering,
- built-in WooCommerce statuses required metadata overrides (color, sequence, visibility),
- configuration had to be migrated safely between staging and production.
Despite the large ecosystem of available plugins, none provided the structural clarity and deterministic behavior required for production-grade systems.
So we built our own.
The result is WooCommerce Order Status Manager — a structured extension used in real systems and released publicly, free of charge.
Core challenges
1. Treating statuses as configuration state
Most existing plugins treat statuses as simple additions.
Our systems required:
- unified control over built-in and custom statuses,
- deterministic ordering,
- consistent runtime projection into WooCommerce,
- safe, inspectable configuration changes.
This required viewing status definitions as structured state, not UI decoration.
2. Safe environment migration
Operational systems require predictable promotion flows:
- staging → production,
- multi-environment deployments,
- version-controlled configuration.
Many solutions lacked:
- preview before applying changes,
- conflict detection,
- explicit replace semantics.
We needed a controlled two-phase import model.
3. Locale-aware teams
International teams required:
- per-locale labels,
- deterministic fallback behavior,
- clear separation between display layer and stored configuration.
Status naming had to be localized without compromising slug stability.
4. Platform alignment
The solution had to:
- avoid WooCommerce schema mutation,
- avoid custom database tables,
- remain compatible with HPOS,
- integrate strictly via hooks.
The architecture needed to align with WordPress runtime discipline — not fight it.
Architectural approach
The extension was designed around clear operational principles.
High-level structure
- Admin UI layer – structured settings screens and wizard-style import flow
- Normalization layer – canonical slug, color, and locale validation
- Persistence adapter – options + transient-backed import session
- Integration adapter – runtime projection into WooCommerce status APIs
This separation ensures:
- deterministic state,
- predictable runtime behavior,
- resilience to configuration drift.
UI and operational workflow
The interface was designed as an operational control panel rather than a simple settings page.

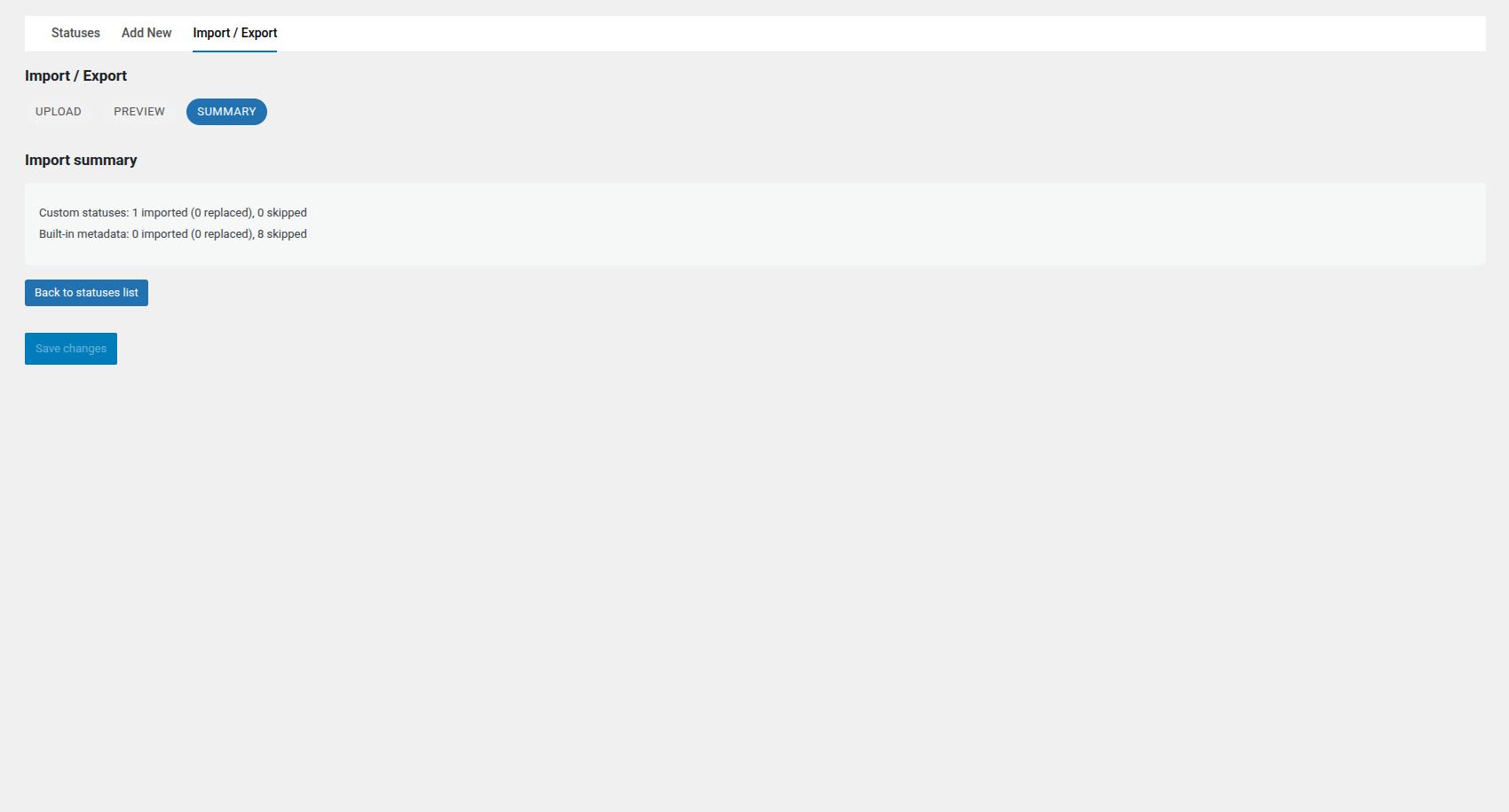

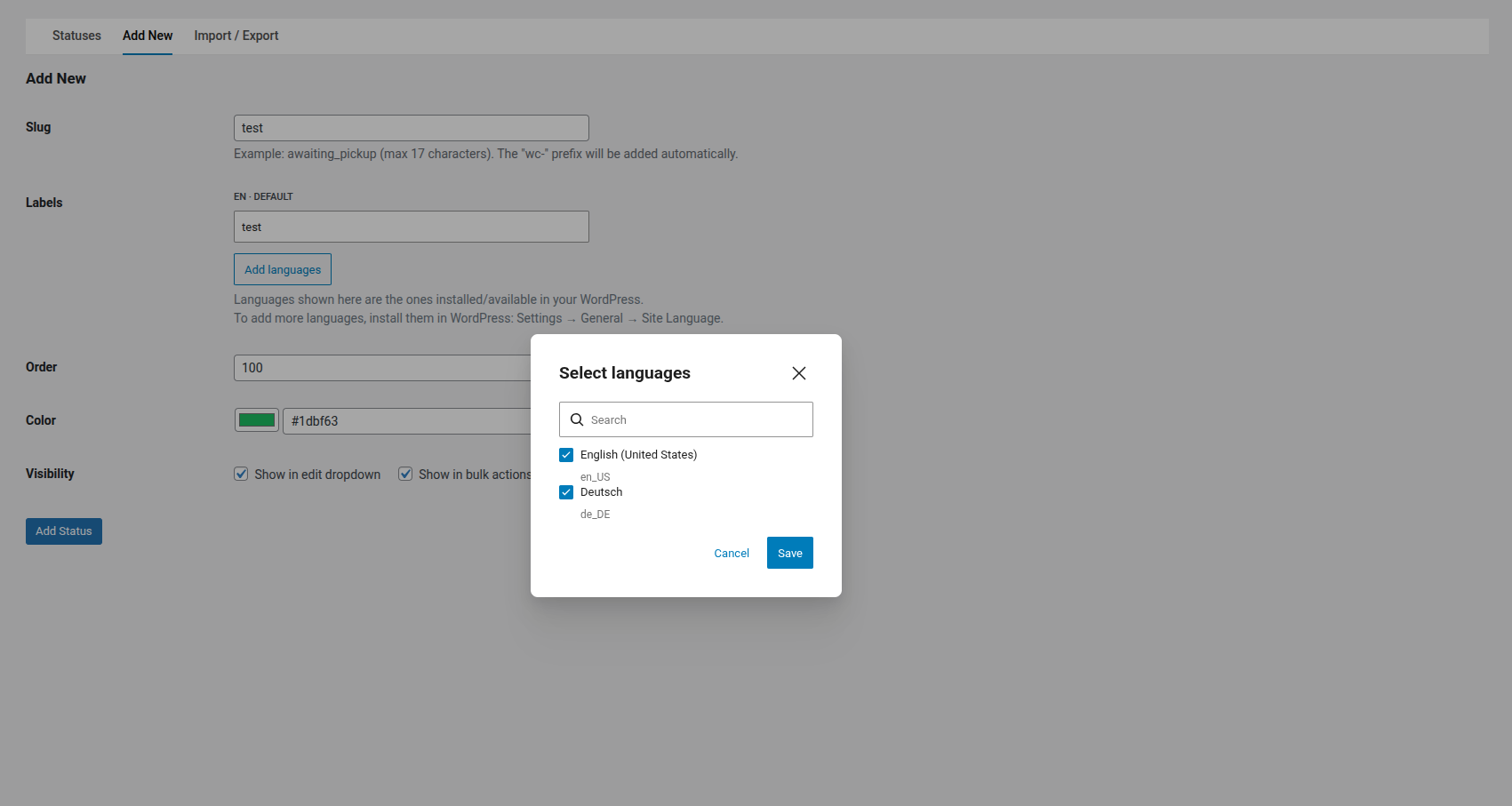

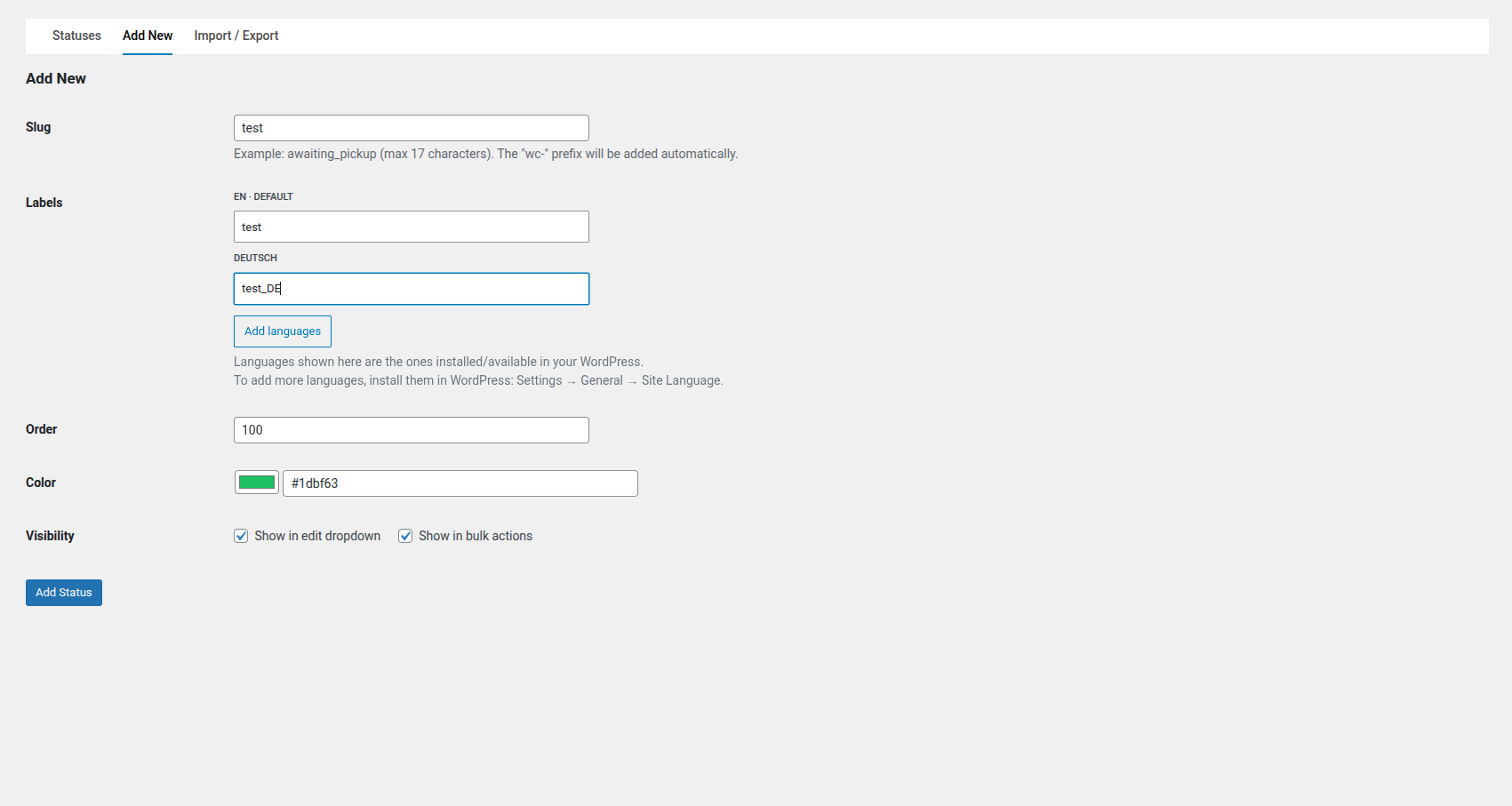

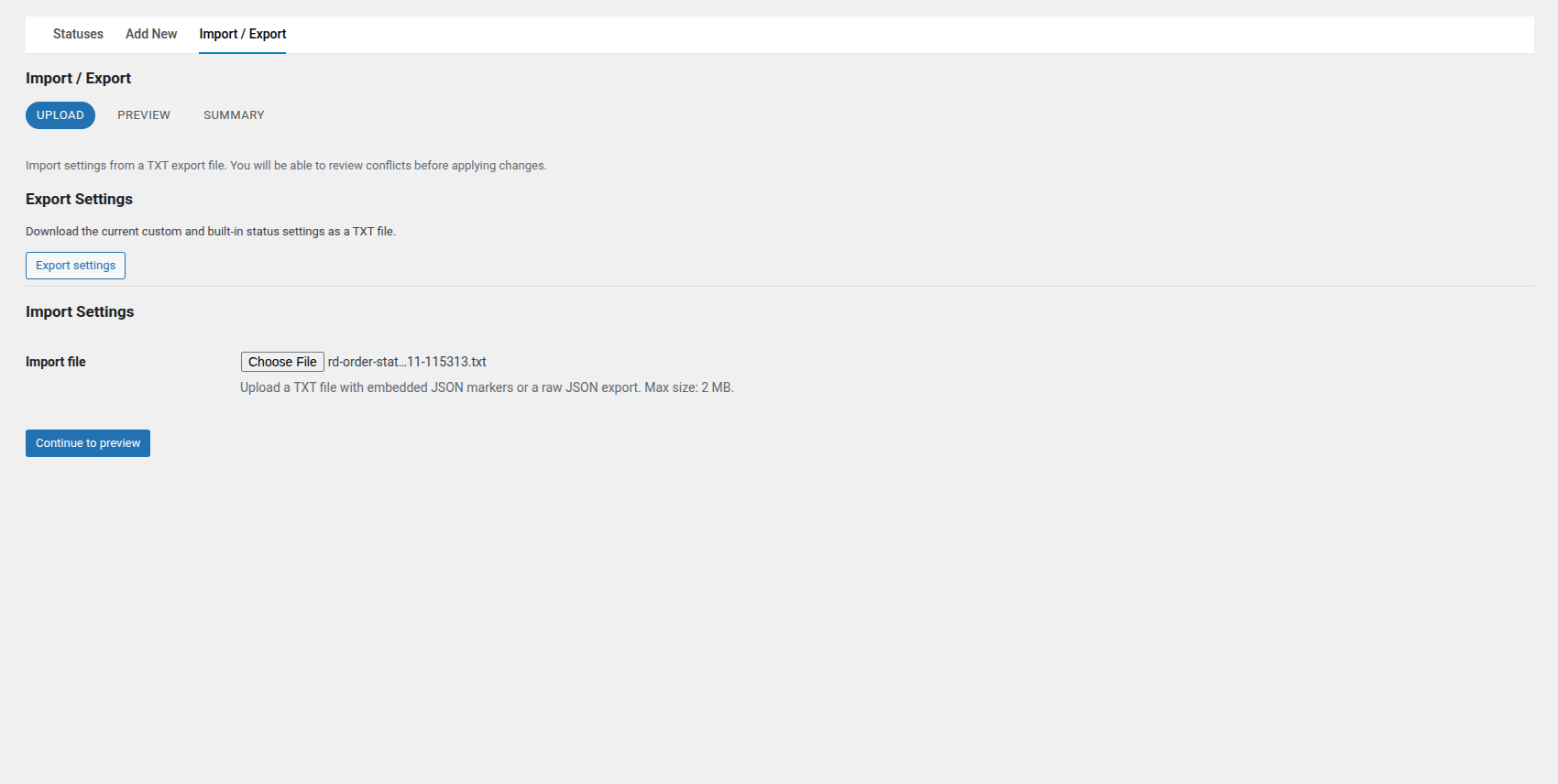

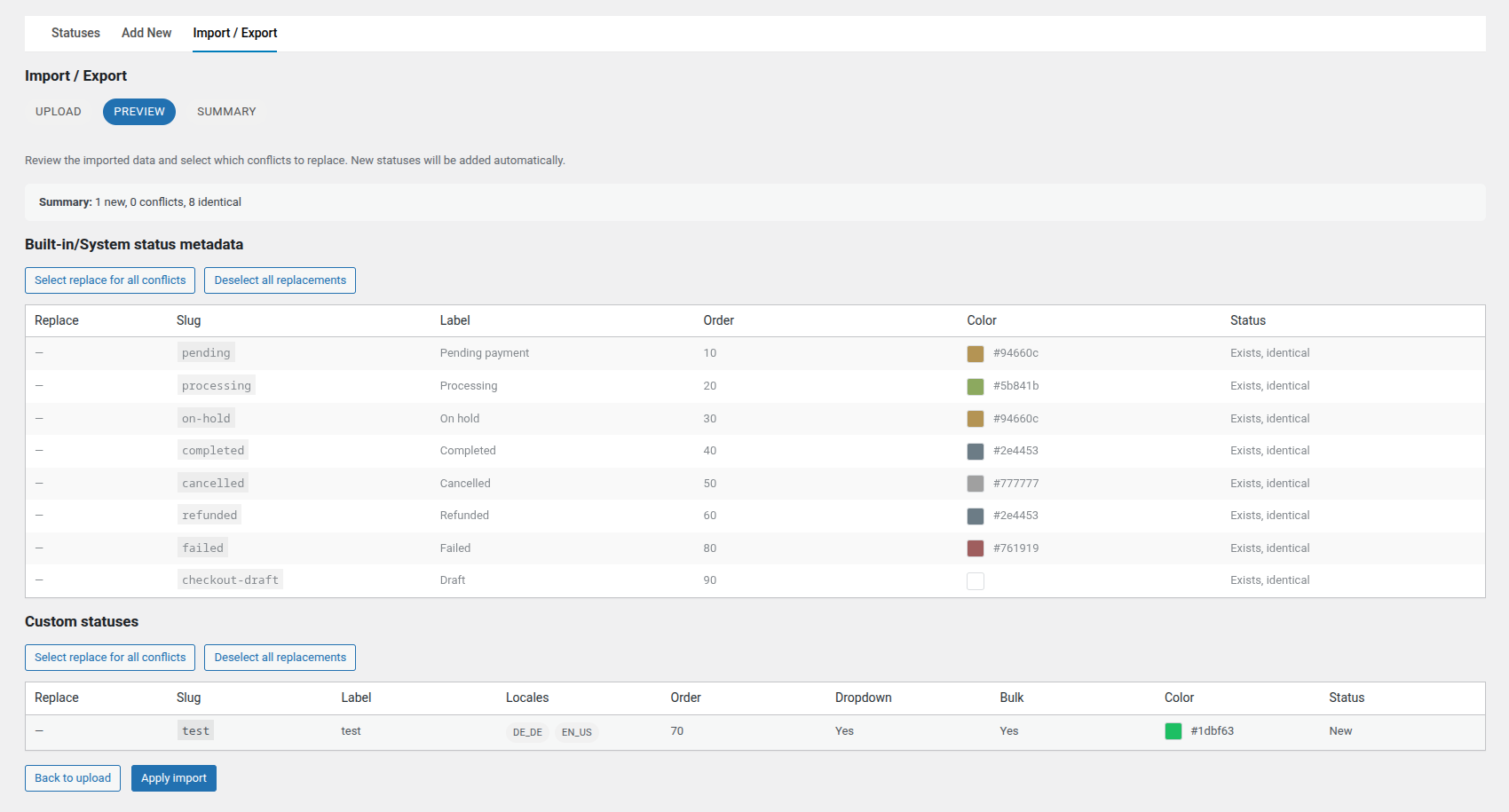

UI showcase
Runtime behavior and execution model
The runtime surface remains intentionally minimal.
The extension:
- registers custom statuses through WooCommerce hooks,
- rewrites effective status arrays deterministically,
- injects metadata overlays (order, color, visibility),
- protects all mutation paths with capability and nonce checks.
There are:
- no custom database tables,
- no direct WooCommerce schema mutation,
- no storefront rendering logic.
The plugin acts as a configuration projection layer, not a runtime engine.
Reliability and safety model
Operational safeguards include:
- Two-phase import (preview → apply)
- Explicit conflict resolution
- Transient-backed import sessions
- Defensive normalization of slugs, locales, and colors
- Server-authoritative reorder validation
Failure paths return explicit admin notices and structured AJAX responses.
This prevents silent misconfiguration.
Current state and evolution
The extension is actively maintained and used in real systems.
We will continue to:
- Maintain compatibility with new WooCommerce versions
- Expand validation safeguards
- Increase integration-level test coverage
- Refine internal modular boundaries
This is not a marketing add-on.
It is part of our long-term operational toolkit.
Final outcome
The result is a production-grade operational extension that:
- treats order statuses as structured configuration state,
- enforces deterministic runtime projection,
- supports safe environment migration,
- aligns with WordPress execution discipline.
This case study demonstrates how even a seemingly small administrative concern — order statuses — becomes critical in operational system design.
Architecture showcase (GitHub)
This case study focuses on context, challenges, and outcomes.
For a deeper look at:
- architectural boundaries,
- execution flows,
- security model,
- engineering trade-offs,
see the dedicated architecture showcase repository:
👉 https://github.com/rocketdeploy-dev/showcase-woocommerce-admin-extension
Source code & releases
The production-ready plugin repository is available here:
👉 https://github.com/rocketdeploy-dev/woocommerce-order-status-manager
From that repository you can:
- review the full source code,
- download the latest tagged release,
- inspect change history,
- track ongoing development.
The plugin is released free of charge and maintained as part of our long-term operational standards.
